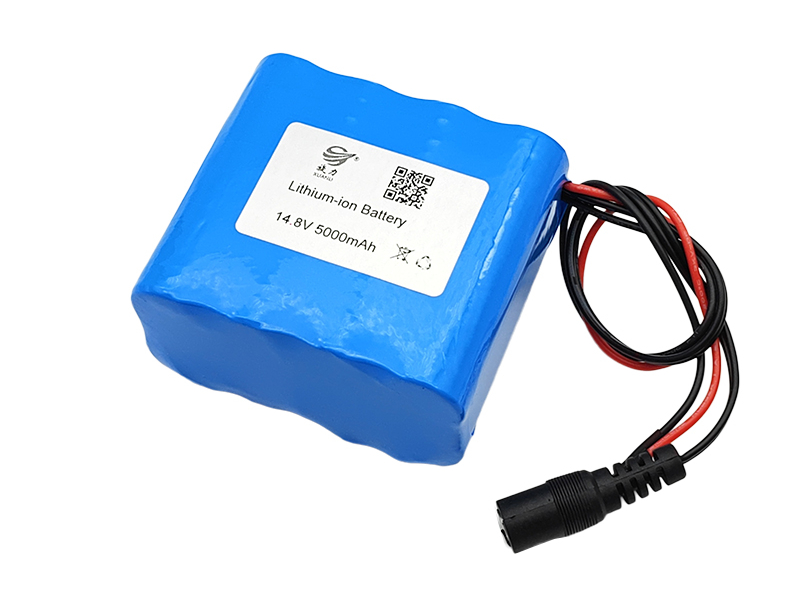

14.8V cylindrical lithium battery Product model: XL 14.8V 5000mAh
14.8V cylindrical lithium battery technical parameters (specific design according to customer requirements - voltage/capacity/size/circuit)
Single battery model: 18650
·Single cell voltage: 3.7V
·Nominal voltage after battery pack combination: 14.8V
·Single battery capacity: 2.5Ah
·Battery combination: 4 series and 2 parallel
·Battery voltage range after combination: 10~16.8V
·Battery capacity after combination: 5Ah
·Battery pack power: 74Wh
·Battery pack size: 37*56*68mm
·Maximum discharge current: <5A
·Instantaneous discharge current: 10~15A
·Maximum charging current: 0.2~0.5C
·Charge and discharge times: >500 times
·Main chip: (Seiko, TI)
14.8V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
